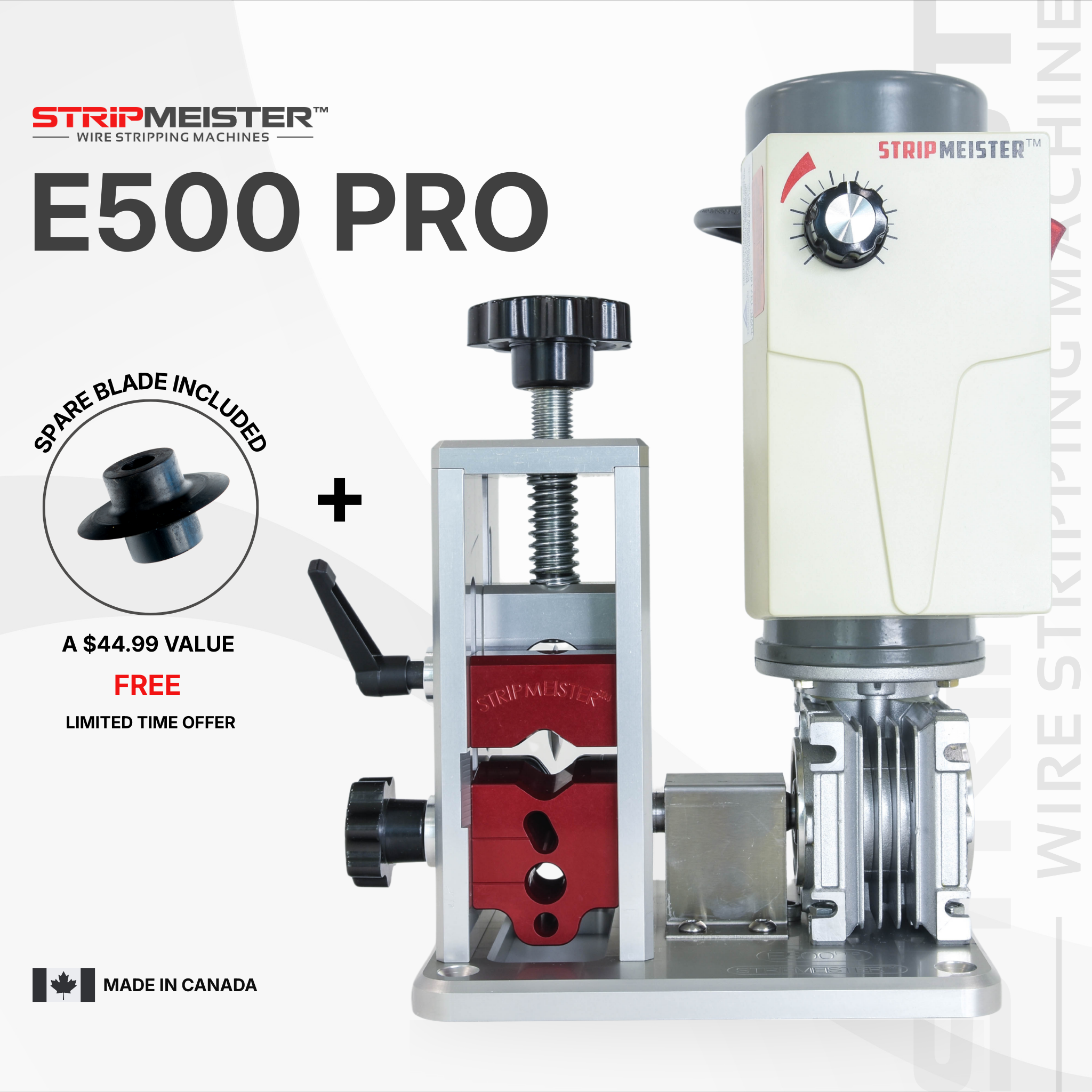

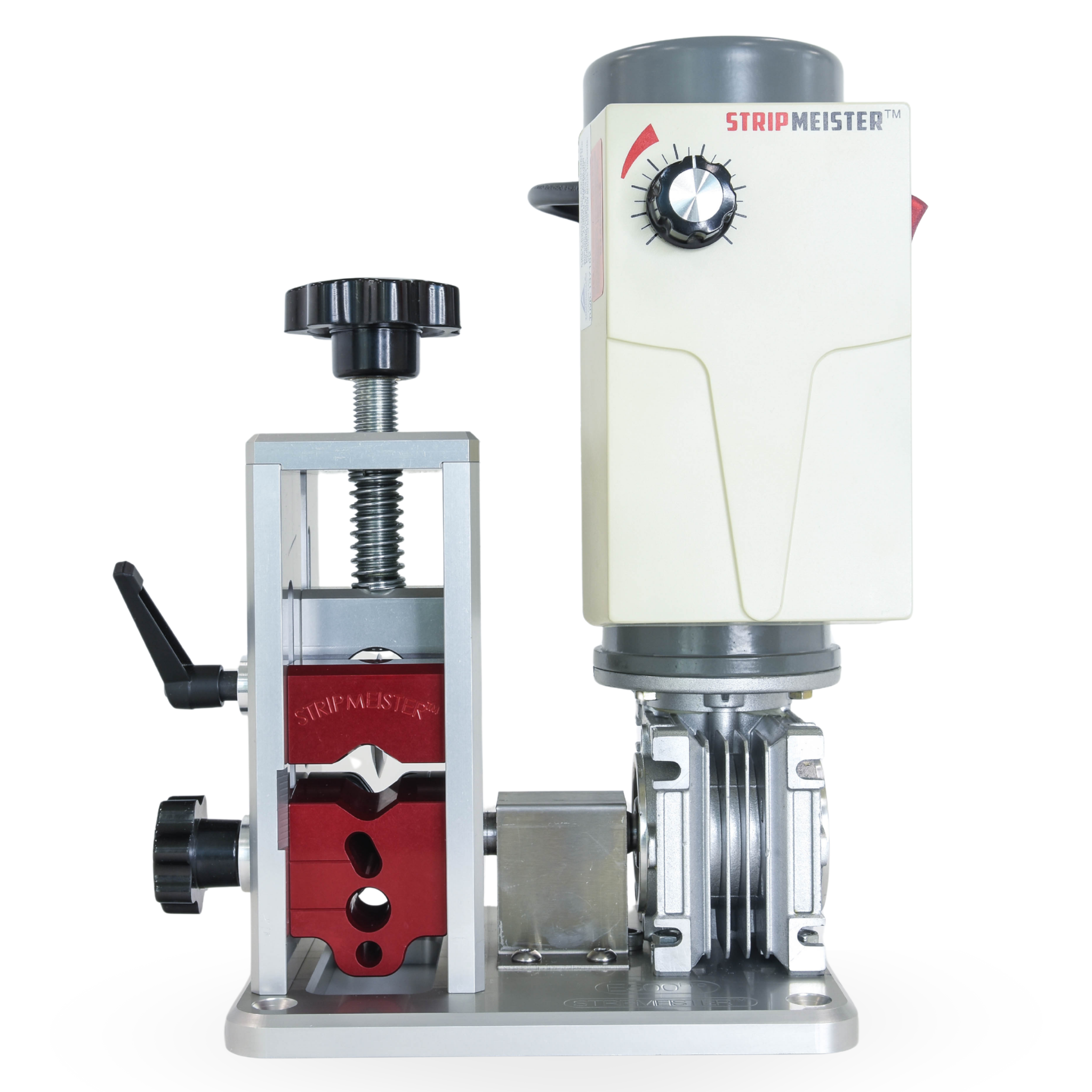

StripMeister E500 Pro Copper Wire Stripping Machine.
-
Estimated Standard Delivery:Nov 10 - Nov 14
-
Limited Time FREE Shipping Offer.
StripMeister E500 Pro Copper Wire Stripping Machine.
The StripMeister E500 Pro is a premium copper wire stripping machine built for people who appreciate precision and thoughtful engineering. Made in Canada, it builds on the proven E350X design with a more refined guide system, greater cable diameter capacity, and several improvements that make stripping different types of wire easier.

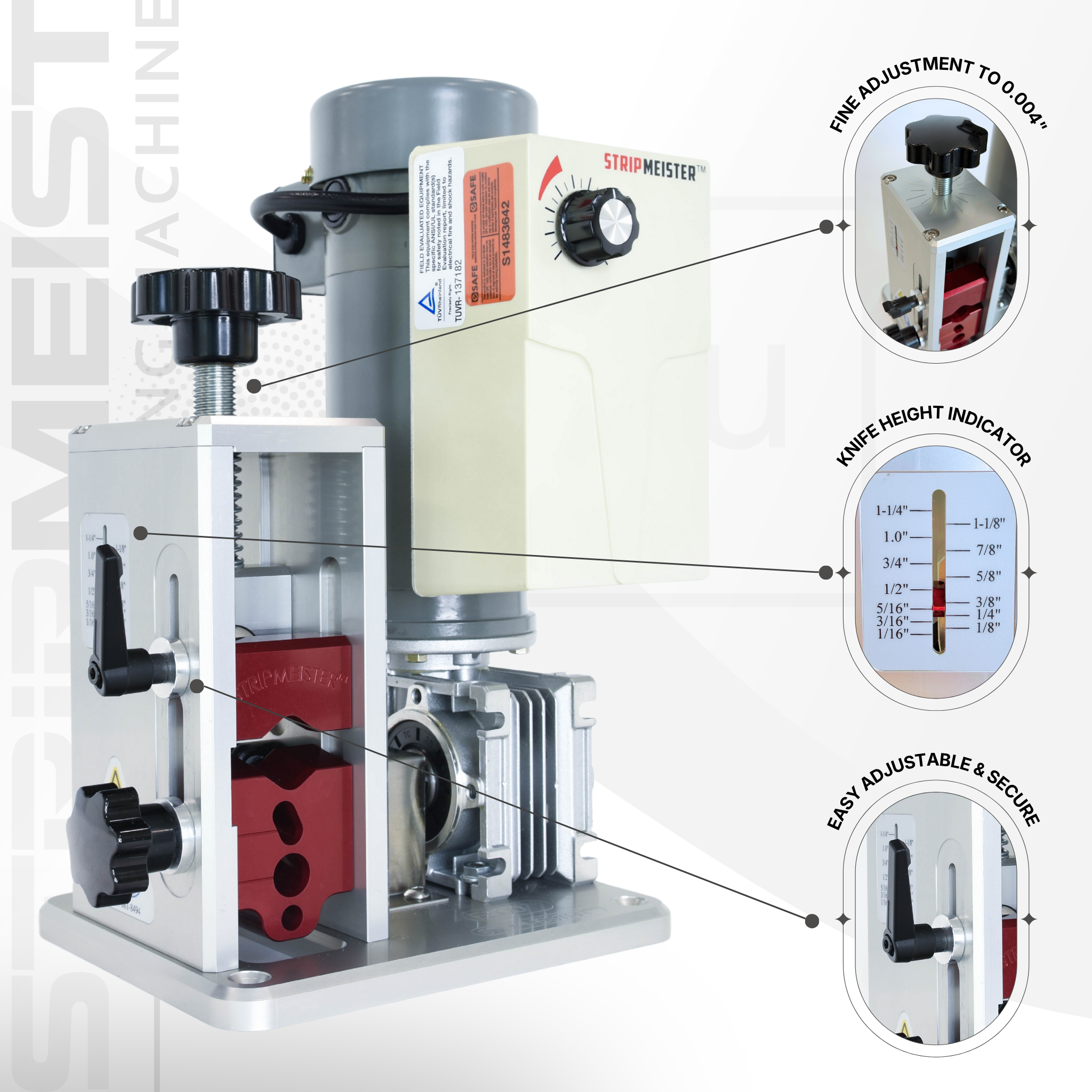

One of the most useful refinements is the calibrated knife height indicator. It allows you to adjust the blade in increments as fine as 0.004 inches, making it easier to find the right cutting depth and return to a previous setting. When you're regularly switching between wire sizes, that kind of precision is something you'll appreciate.

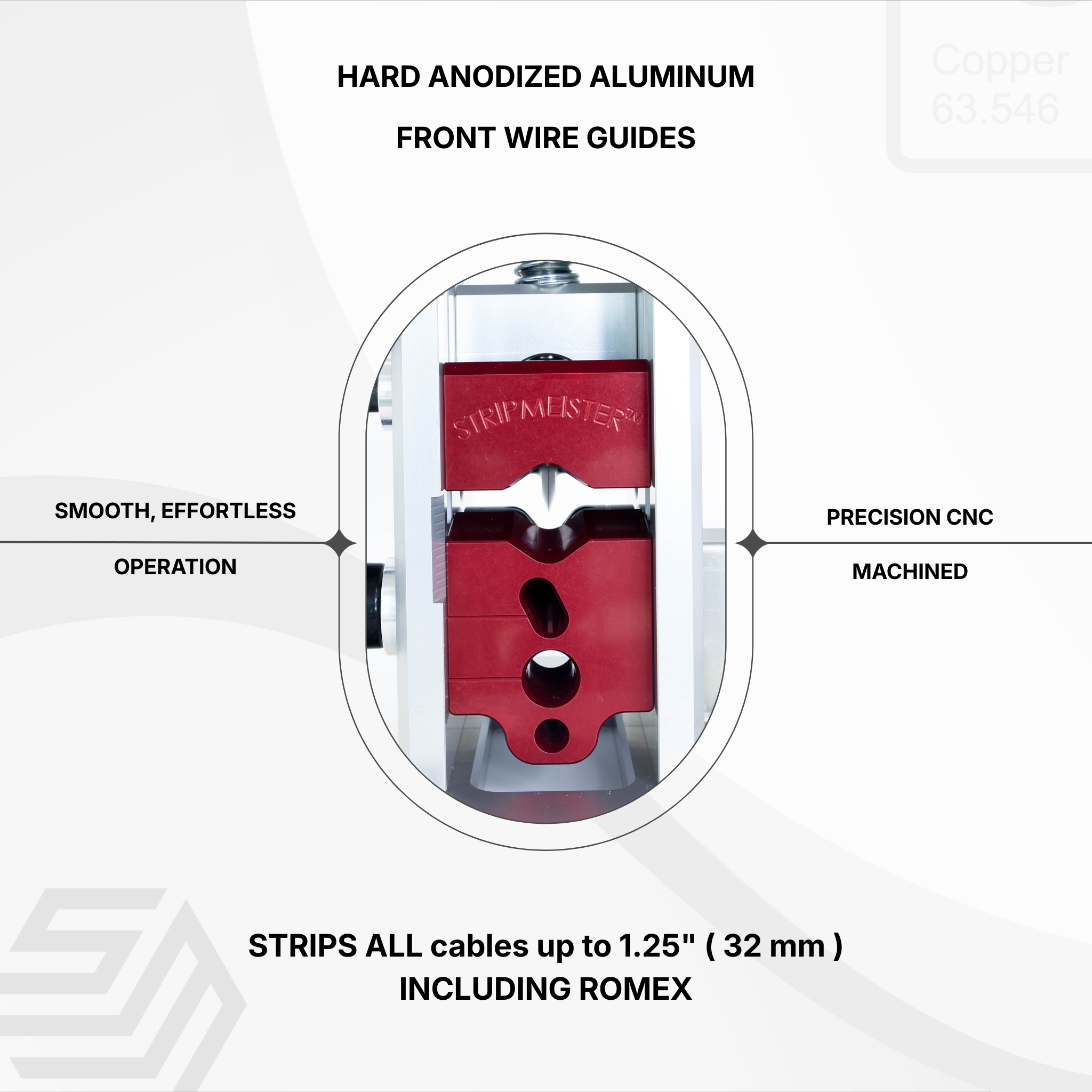

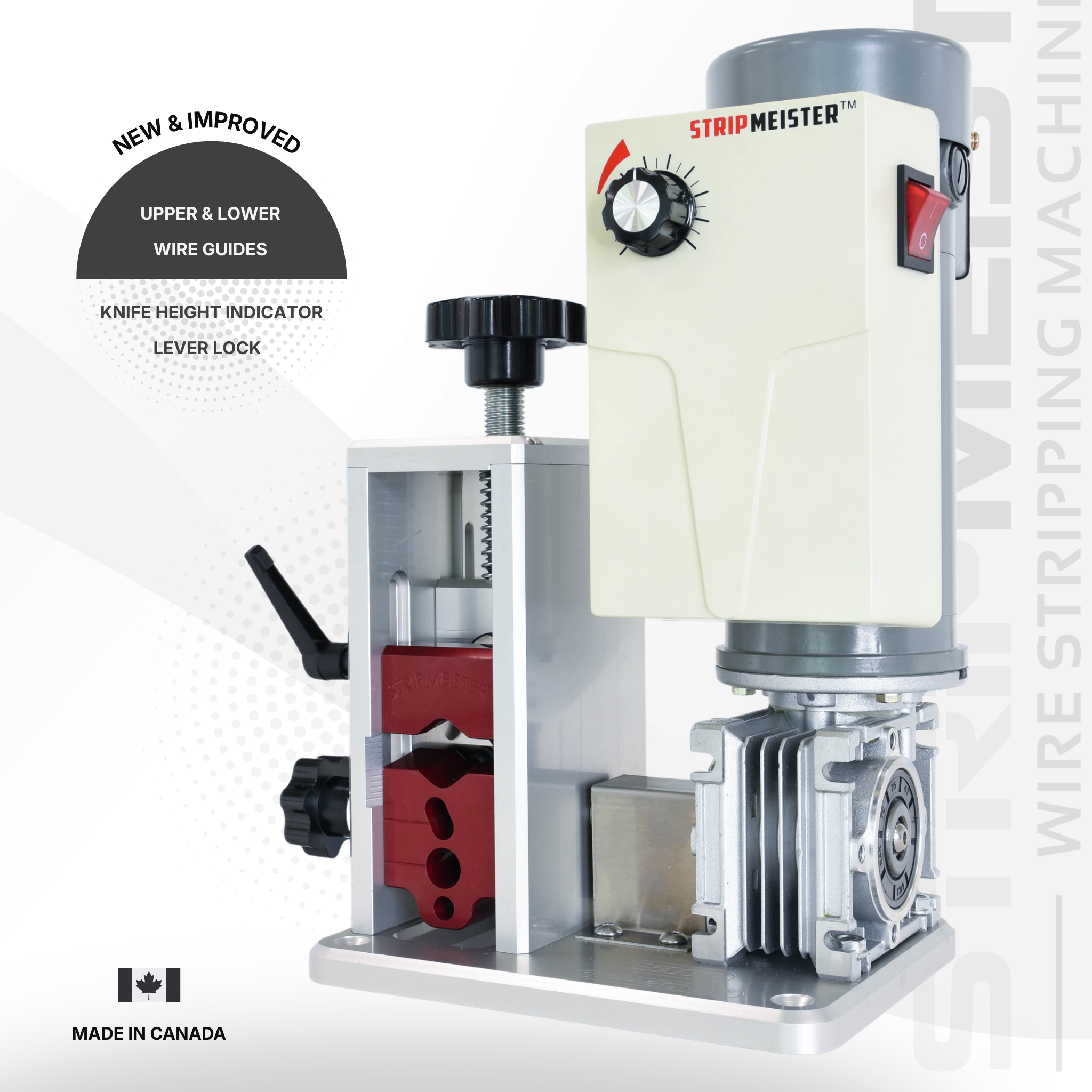

The E500 Pro also features upper and lower wire guides that help keep cable aligned as it passes through the machine. The hard-anodized aluminum front guides are built to resist wear, while the stainless-steel rear guide helps maintain straight tracking. A lever-lock system holds the guides firmly in position once you've made your adjustments.

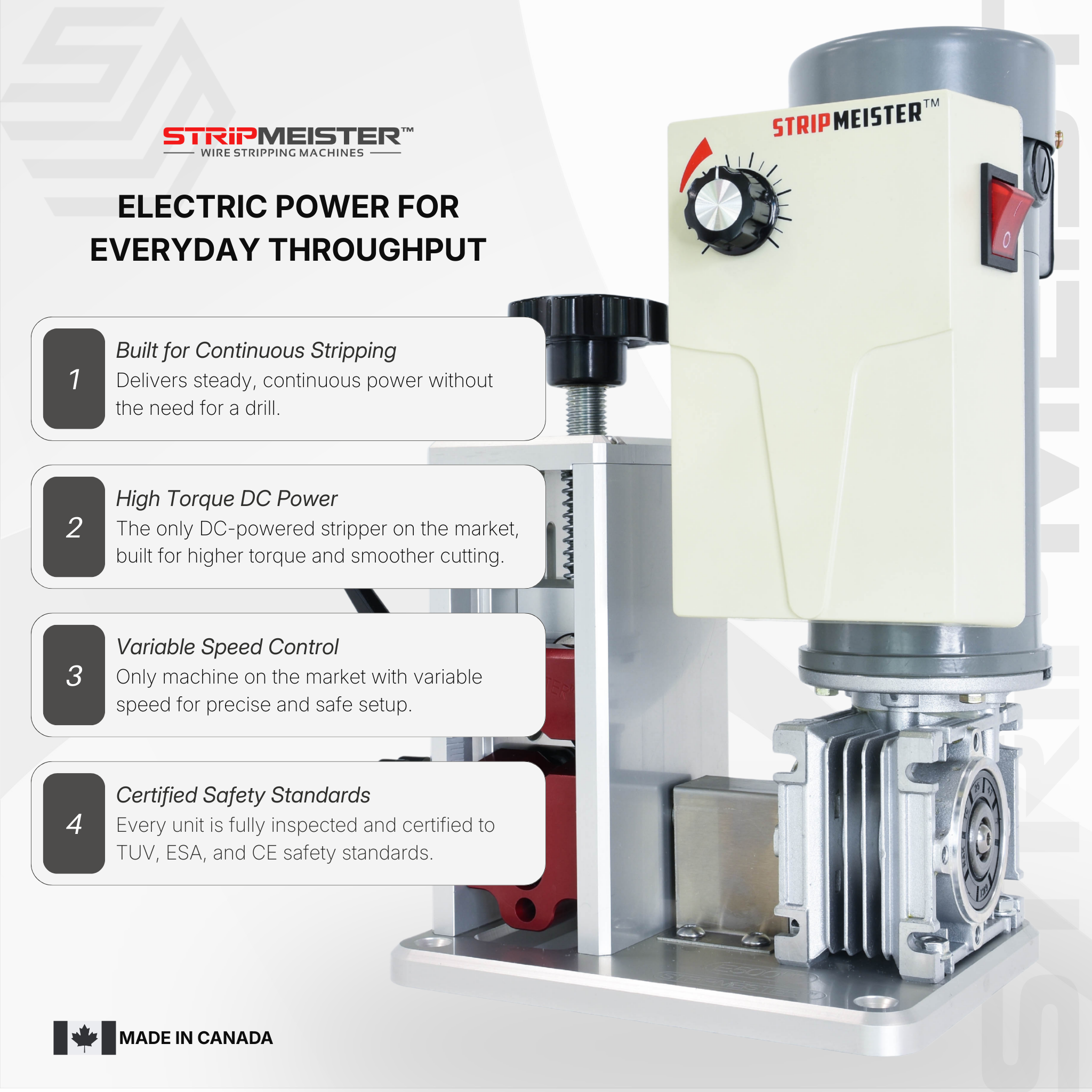

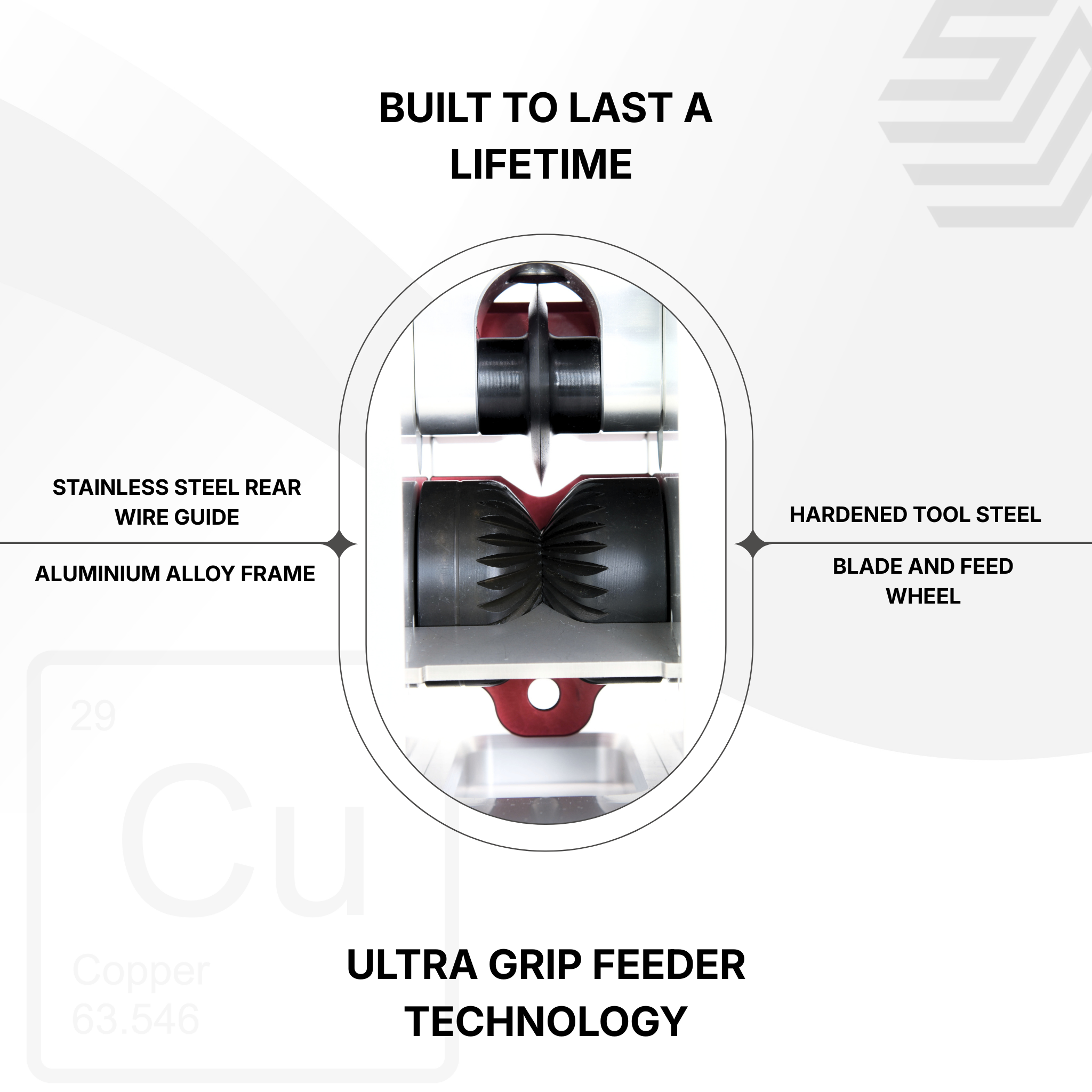

Our ULTRA GRIP Feeder Technology helps move bent, twisted, and irregular scrap wire through the machine with fewer slips and interruptions. Combined with the variable-speed electric motor, it gives you more control over the feeding process, whether you're working with smaller electrical wire or heavier insulated cable.
The solid aluminum frame and precision-machined, heat-treated tool-steel components complete a machine built for regular use. With the ability to handle cable up to 1.25 inches in diameter, the E500 Pro is a practical choice for electricians, contractors, and recyclers who want a dependable copper wire stripper machine with more precise adjustments and greater versatility.
- Now with ULTRA GRIP Feeder Technology. Will untangle mangled wires effortlessly without any slips or jams.
- Strips all wire sizes from #18 wire to 500 mcm, diameters from 0.08″ (2mm) up to 1.25″ (32 mm) including ROMEX and braided (stranded) wire.
- POWER INPUT: 110V/60Hz/6.5AMPS (Plugs into any standard household outlet)
- The perfect wire stripping machine built for a huge range of jobs for most people with scrap wire.
- Supremely robust frame for its intended max wire gauges.
- Far stronger than any competitors model in its class.
- Heavy duty knife and 15mm drive shaft almost double the strength of the E250.
- Larger spiral groove feeders will strip wire faster.
- Includes 1/4 hp fan cooled DC Motor tough enough to run all day and night.
- Variable speed control to find the perfect speed for all your different wire sizes.
- Constructed from solid aircraft grade aluminum alloy.
- Built in ROMEX adapter.
- Precision engineered, machined knife and feeder drives from hardened, heat treated tool steel.
- Calibrated knife height indicator provides quick, repeatable blade adjustments.
- Lever lock mechanism keeps your guide settings secure during operation
- All precision machined with 5axis CNC milling technology
- Certified TUV, ESA, and CE.
- Made In Canada

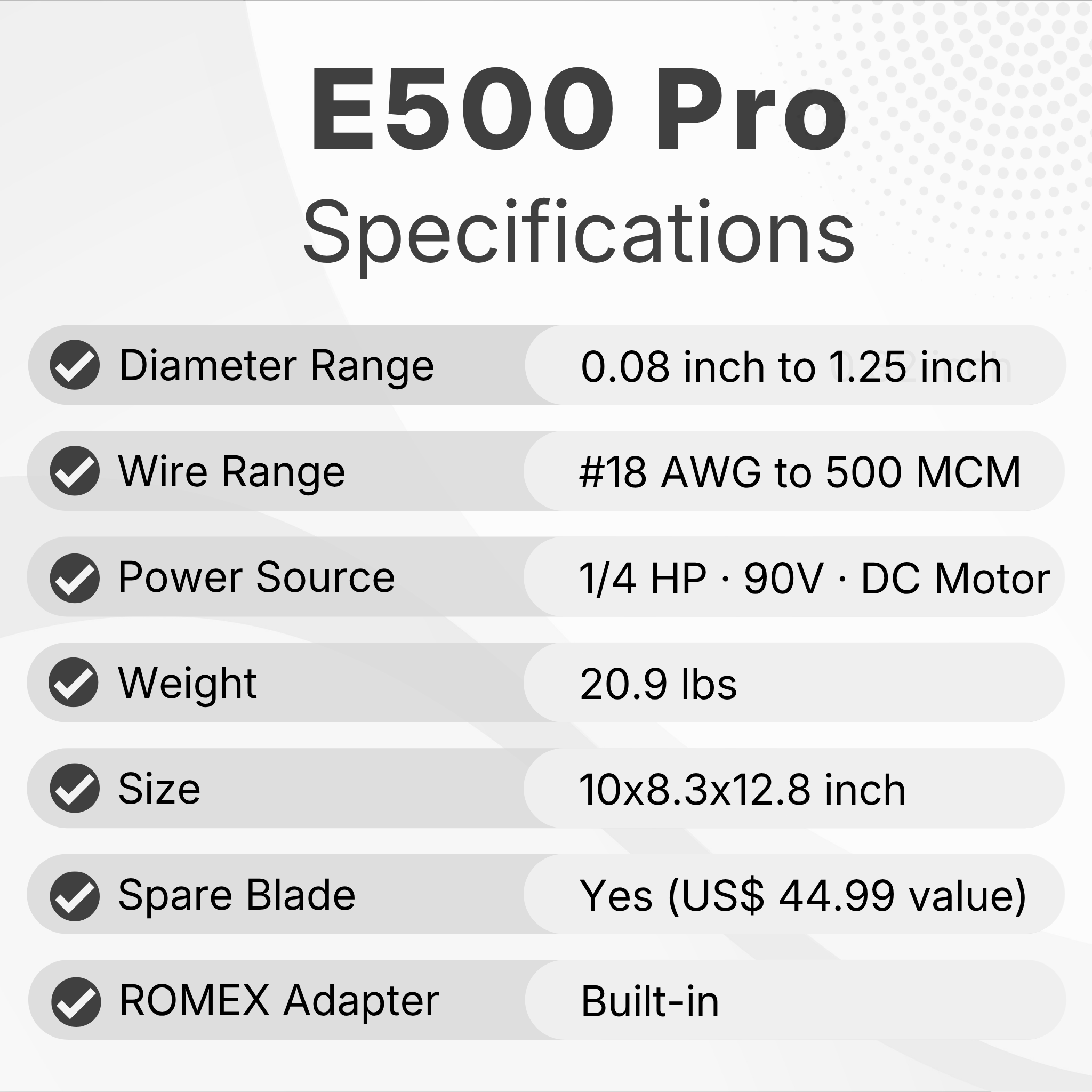

- Diameter Range: 0.08” to 1.25”
- Wire Range: #18 AWG to 500 MCM
- Power Source: 1/4 HP Variable Speed DC Motor.
- Weight : 20.9 lbs
- Size: 10 × 8.3 × 12.8 inch
- ROMEX Adapter: Built-in
- Spare Blade : Yes
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
We know your StripMeister™ will provide you many years of flawless wire stripping
However, if you are not completely satisfied with your StripMeister™, please contact us and have your transaction # handy.
TOLL FREE: 1-800-681-8494 Monday to Friday 8am – 4pm (Eastern Time)
If a return is required, please note the following:
StripMeister™ Original and Original Pro Return Policy
- Any unit returned for refund must have all original packaging and contents included in the shipment.
- The customer is responsible for the shipping costs to have the unit returned back to Wire Strip Meister Inc.
- All returns must be made within 30 days from the date of purchase.
- A refund will ONLY be issued if the unit has been unused. Should the unit show evidence of usage and wear, a refund will not be applicable and the unit will be shipped back to you.
- Notwithstanding the foregoing, the STRIPMEISTER™ circular knife & feeders are not covered by any warranty.
StripMeister™ E250 Pro, E350X, E500 Pro, E1000, E2000X and E2000 Pro Return Policy
- Any unit returned for refund must have all original packaging and contents included in the shipment.
- The customer is responsible for the shipping costs to have the unit returned back to Wire Strip Meister Inc.
- All returns must be made within 30 days from the date of purchase.
- Any unit returned will be subject to a 15% restocking charge.
- A refund will ONLY be issued if the unit has been unused. Should the unit show evidence of usage and wear, a refund will not be applicable and the unit will be shipped back to you.
- Notwithstanding the foregoing, the STRIPMEISTER™ circular knife & feeders are not covered by any warranty.

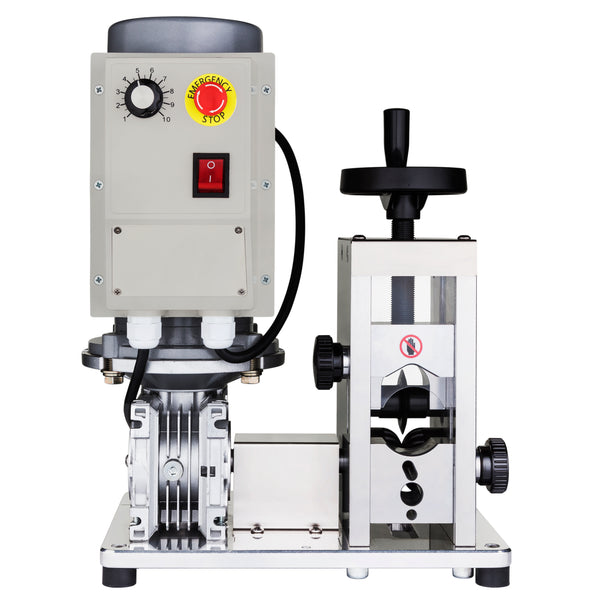

Compare Machines
Compare Machines
See how these two StripMeister models differ in power, speed, and capability so you can choose the right fit for your wire mix and workload.
Power Source
1/4 HP DC motor
Power Source
1/2 HP DC motor
Weight
24 lbs
Weight
45 lbs
Diameter Range
Up to 1.25 in (32 mm)
Diameter Range
Up to 1.8 in (46 mm)
Knife Diameter
1.625 "
Knife Diameter
2 "
Feed wheel Diameter
1.625 "
Feed wheel Diameter
2 "
Wire Range
#18 AWG to 500 MCM
Wire Range
#18 AWG to 1000 MCM
Knife Adjustment Mechanism
Knob
Knife Adjustment Mechanism
Heavy Duty Hand wheel
ROMEX Adapter
Built In
ROMEX Adapter
Built In
Variable Speed
Yes
Variable Speed
Yes
Wire Guide System
Upper & Lower Guide
Wire Guide System
Upper & Lower Guide
