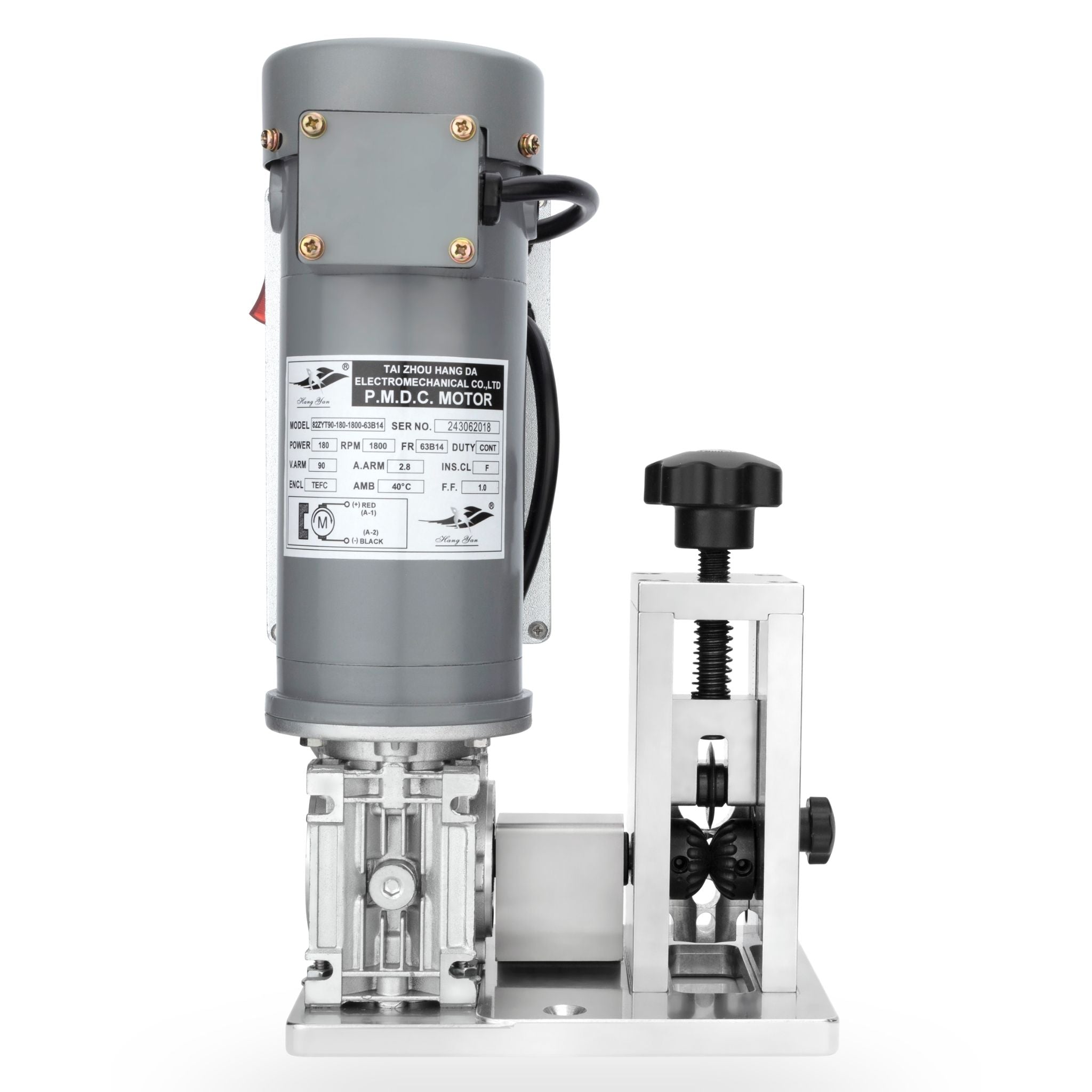

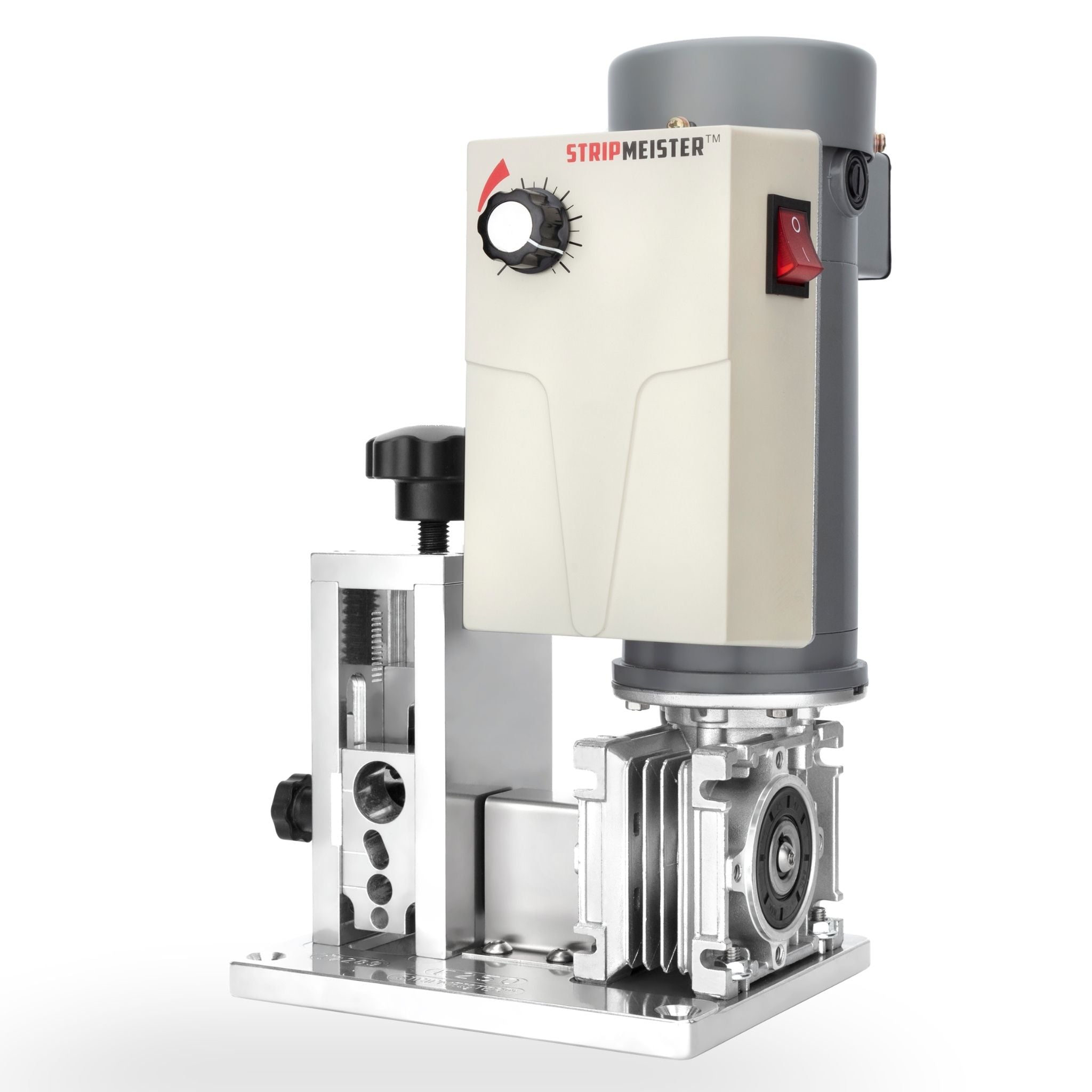

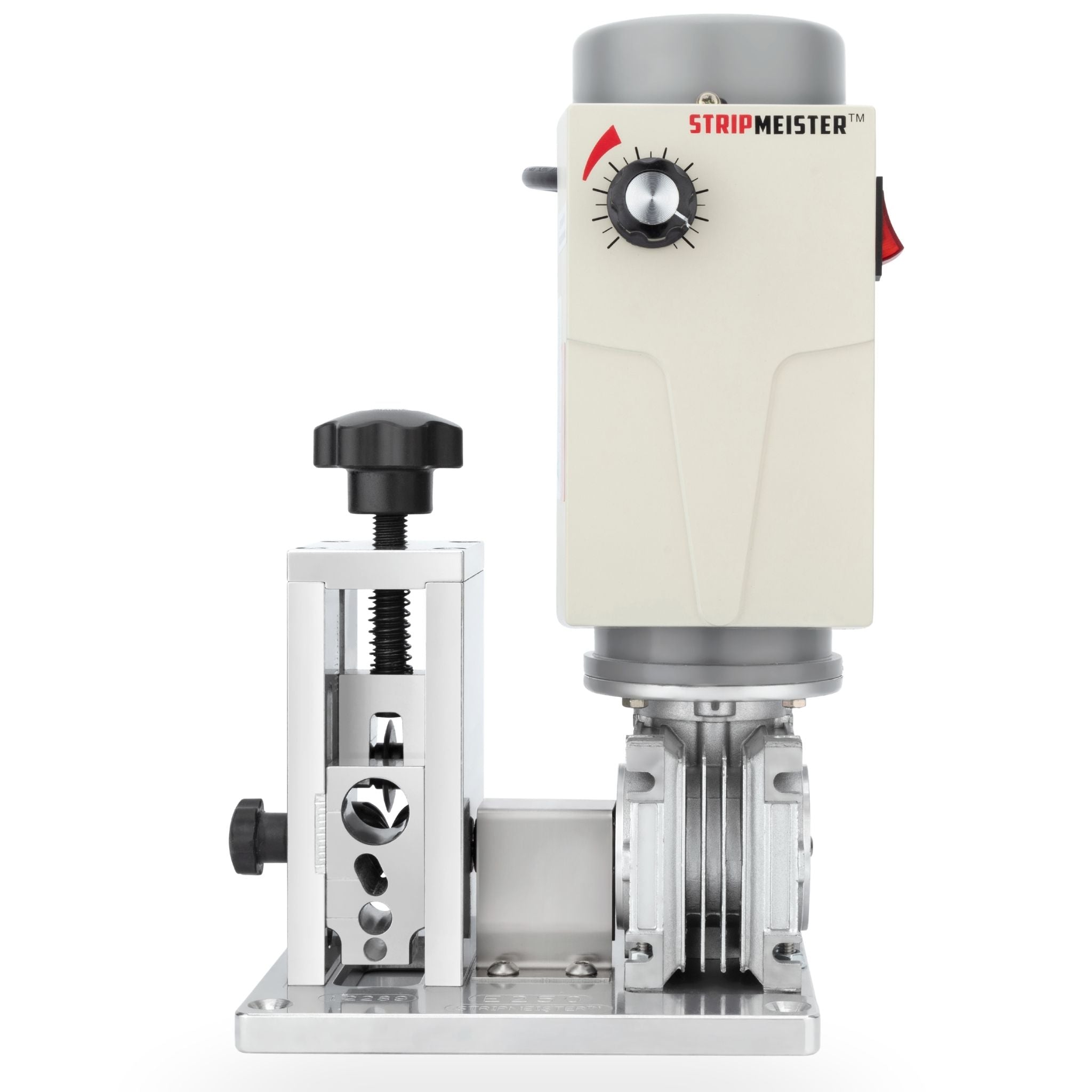

StripMeister E250 Motorized Wire Stripper

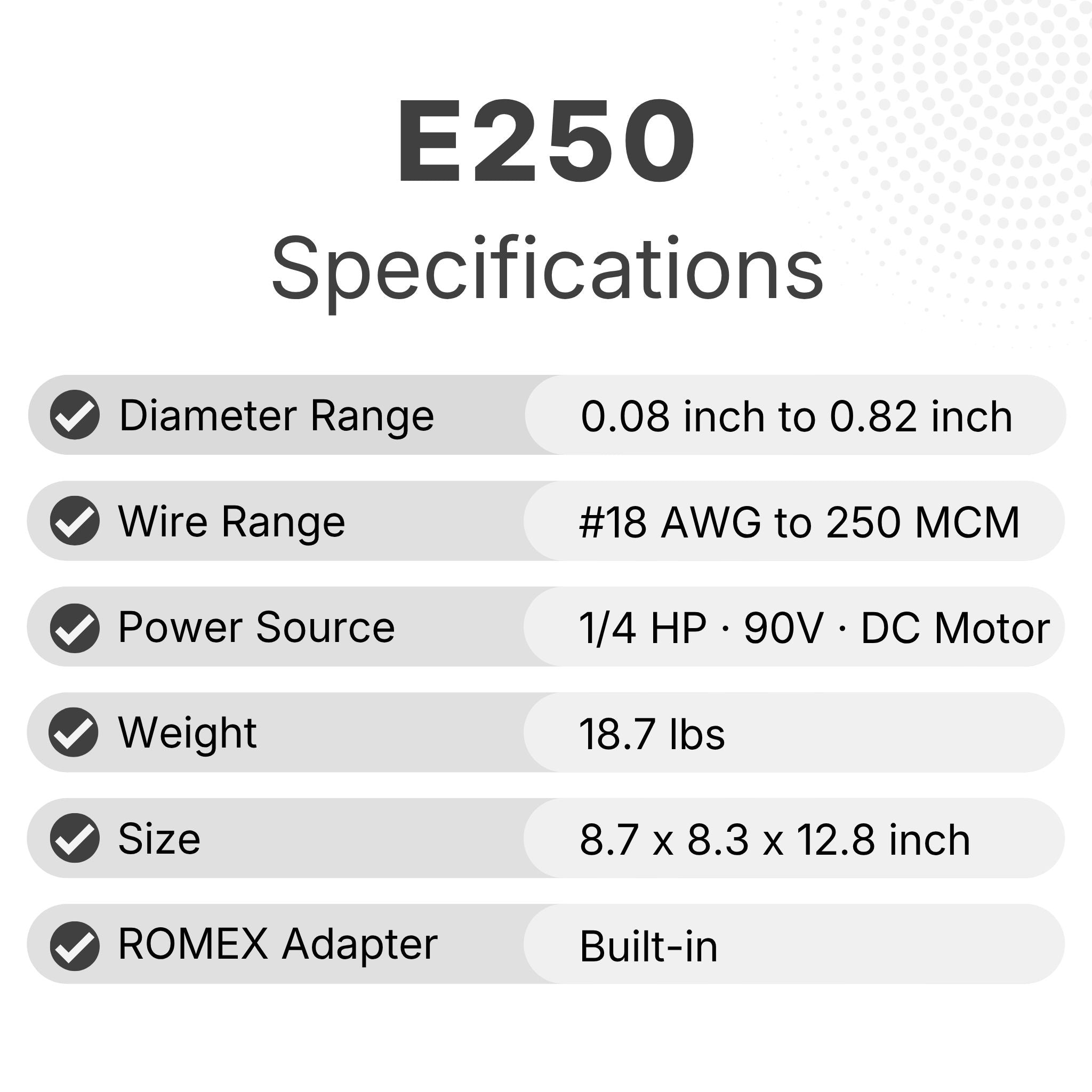

The StripMeister E250 wire stripping machine strips wire from #18 AWG to 250 MCM. This includes diameters from 0.08 to 0.82 inches or 2 mm to 20.96 mm. The adjustable blade depth and guide hole system ensure clean cuts across the entire range without damaging copper or aluminum conductors.

Yes. The StripMeister E250 wire stripping machine strips both copper and aluminum wire cleanly using the same setup process. The heat-treated tool-steel blade delivers precise insulation removal on both conductor types. Aluminum wire strips cleanly when the blade depth is properly adjusted using the blade depth reference indicator.

Yes. The StripMeister E250 wire stripping machine includes a built-in Romex adapter and strips Romex, THHN, stranded cable, solid wire, and twisted wire. All wire types strip cleanly when the blade depth is properly adjusted. ULTRA GRIP Feeder Technology grips kinked or irregular cable securely for jam-resistant, hands-free operation.

To check the fuse on the StripMeister E250 wire stripping machine, follow these steps: unplug the machine, remove the drive cover, remove the four M3 screws, then lift the cover carefully. The fuse is located on the back side. If replacement is needed, use a T8A Ceramic Cylinder, Time-Lag, 250VAC/UL/CSA, 5x20mm Fuse (Allied Electronic #70160407).

Ensure the StripMeister E250 wire stripping machine is unplugged before performing maintenance. Check the gearbox oil level monthly using ISO VG320 or Petro of China CN320 gear oil. Inspect the blade for damage, clean the Feeder Drive of dirt and debris, and inspect the machine for loose parts. Regular maintenance ensures optimal performance and extends machine longevity.

When wire slips sideways on the StripMeister E250 Motorized Wire Stripper, it is normally not at the correct angle. Set the wire guide to approximately 15 degrees into the feed wheel with light pressure. Proper wire guide angle maintains straight tracking and prevents wire shifting during automatic stripping operations.

Use a general purpose white grease for the StripMeister E250 Motorized Wire Stripper. This grease should be low odor, non-staining, and NLGI grade 2. General purpose white grease is available at any local hardware store and provides proper lubrication for all moving parts on this automatic copper wire stripper.

For safe operation, place the StripMeister E250 wire stripping machine on a stable, level work surface to prevent movement during use. The machine weighs 18.7 lbs and measures 8.7x8.3x12.8 inches, making it suitable for bench placement in workshops, job sites, and recycling facilities. Follow the mounting steps in your user manual for detailed installation instructions.

The StripMeister E250 Motorized Wire Stripper blade is made from heat-treated and hardened tool steel for exceptional durability. The blade is precision-machined using 5-axis CNC milling technology. This construction ensures long-lasting sharpness and clean, centered cuts on copper and aluminum wire across the entire wire range.

The StripMeister E250 Motorized Wire Stripper blade is CNC machined using precision 5-axis CNC milling technology. This manufacturing process ensures accuracy and repeatability for consistent cutting performance. The blade is made from hardened, heat-treated tool steel and is precision-engineered for long service life in continuous stripping operations.

Yes. The StripMeister E250 Motorized Wire Stripper can run on 220 Volts without any configuration changes from StripMeister. Because the plug is regularly different for 220 Volts, you will need an adapter for the machine. The E250 features a 1/4 HP 90V DC motor with variable speed control for different wire sizes.

ULTRA GRIP Feeder Technology on the StripMeister E250 Motorized Wire Stripper provides smooth, jam-resistant stripping even with twisted or tangled scrap wire. The system untangles mangled wires effortlessly without slips or jams, maintaining consistent tension through the automatic feed system. This technology reduces downtime and rework, keeping production moving efficiently for recyclers, electricians, and contractors.
