What a Wire Stripper Machine Actually Does

The job sounds simple. Feed wire in one end, get insulation-removed copper out the other. But the mechanics involved, holding the wire steady, cutting insulation at a precise depth without touching the copper underneath, feeding irregular cable consistently, require more engineering precision than most people expect.

A wire stripping machine cuts the insulation longitudinally as the wire feeds through. The blade depth has to be set exactly right. Too shallow and you're making multiple passes. Too deep and you nick the copper, which gets the load downgraded at the scrap yard. The feeder system has to grip the wire firmly enough to pull it through without slipping, and gently enough not to crush it.

Cheap machines solve these problems cheaply. Professional machines solve them properly.

The First Thing to Get Right: Wire Range

Wire range is the spec most buyers look at first, and it's the right place to start. Every machine has a minimum and maximum wire diameter it can process.

The standard way to express wire range is AWG (American Wire Gauge) on the small end and MCM (thousand circular mils) on the large end. All StripMeister models start at #18 AWG on the small end. Where they differ is the maximum.

Most residential and commercial wire, your Romex and standard THHN, falls well within the #18 AWG to 250 MCM range. Once you start getting into larger commercial cable, service entrance wire, or industrial feeders, you need a machine with more capacity.

Motor Type: Why DC-Powered Machines Outperform

Not all electric wire stripping machines are built around the same motor technology. StripMeister electric models run on DC motors, and the difference matters in practice.

DC motors deliver higher torque at lower speeds, which is exactly what wire stripping demands. The blade is cutting through insulation continuously, and when the wire is twisted, kinked, or slightly irregular, the motor needs to maintain consistent pulling force without stalling or surging. AC motors are cheaper to manufacture and fine for applications where load is steady. Wire stripping is not that application.

The 1/4 HP DC motors in the E250 Pro and E500 Pro are paired with variable speed control. You dial the speed down for setup and for smaller gauges, up for heavier continuous runs. The E1000 runs a 1/2 HP DC motor for larger cable. The E2000X steps up to a 1 HP DC motor with a precision gearbox for industrial capacity.

Variable speed is not a luxury feature. It's how you set the machine up safely on unfamiliar wire, and how you protect the copper during the cut.

The Feeder System: Where Cheap Machines Fall Apart

If you've used a low-quality wire stripping machine, you know the feeder is usually where it fails. The wire slips, bunches up at the feed entrance, jams mid-strip, or feeds at an angle that throws off the cut depth.

All StripMeister machines use ULTRA GRIP Feeder Technology as standard across the full lineup. The feeder grips the wire positively and pulls it through at a consistent rate, even when the cable is twisted, kinked, or slightly bent from being coiled. Job site wire is almost never in perfect condition. The feeder has to handle the real thing, not a perfect lab sample.

Build Quality: What the Machine Is Made Of

This is where the gap between professional machines and cheap imports becomes most visible.

StripMeister machines are built from CNC-machined aircraft-grade aluminum for the frame and heat-treated tool steel for the blade and feeder drives. The precision machining is done on 5-axis CNC equipment, which means the tolerances are tight enough that the blade aligns the same way every time you change it. No re-adjustment required after a blade swap.

Cheap machines use cast or stamped components, softer metals, and basic manufacturing tolerances. They work fine on the first few loads. Under continuous use, the slop in the tolerances starts showing up as inconsistency in cut depth. The blade dulls faster because the steel wasn't properly hardened. The frame flexes slightly under load, which changes the cutting geometry.

The "buy once, cry once" argument is real here. A machine that costs more upfront but runs consistently for years costs less than two or three cheap replacements plus the wasted time and downgraded copper along the way.

All StripMeister machines are Made in Canada.

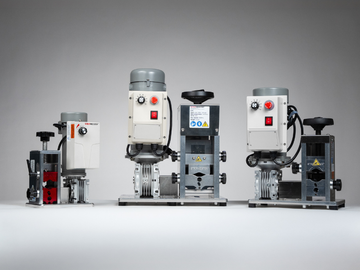

Which StripMeister Wire Stripper Machine Fits Your Volume

Here's the full active lineup with verified specifications, matched to use case.

The Spec Comparison at a Glance

All models include ULTRA GRIP Feeder Technology. All Made in Canada.

The Final Word on Choosing

The wire stripper machine you buy should match the wire you actually process, not the wire you occasionally see. Underbuy on capacity and you have to buy again when you want to process bigger cables. Overbuy and you've spent more than the job requires.

Beyond capacity, the things that actually determine whether a wire stripping machine is worth owning over the long run are the motor, the feeder, and the construction. Those are the components that either hold up or don't. StripMeister builds each of them to last.
